LST7L12QX6E0 (03034DHG-002: 12-port 40GE QSFP+ inferface card (X6E,QSFP+))
Overview
Table 7-229 Basic information about the LST7L12QX6E0
| Item | Details |
|---|---|
| Description | 12-port 40GE QSFP+ inferface card (X6E,QSFP+) |
| Part Number | 03034DHG-002 |
| Model | LST7L12QX6E0 |
| Card Type | Interface card |
Appearance

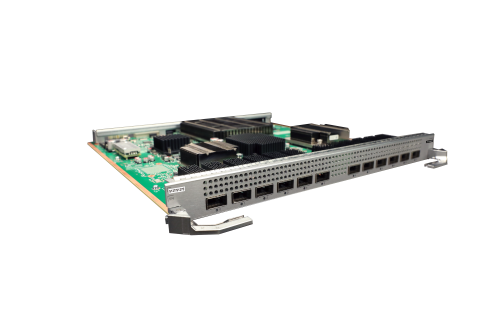

Figure 7-110 Appearance of the LST7L12QX6E0
Version Mapping
Table 7-230 Mappings between LST7L12QX6E0 and product models
| Product | Product Model | First Supported Version | IDs of available slots | Limitations |
|---|---|---|---|---|
| S12700E | S12700E-12 | V200R021C10SPC600 | 01–12 | If the card is used in V200R021C00SPC100 or V200R021C01, install V200R021SPH180 or a later patch. |
| S12700E | S12700E-4 | V200R021C10SPC600 | 01–04 | If the card is used in V200R021C00SPC100 or V200R021C01, install V200R021SPH180 or a later patch. |
| S12700E | S12700E-4 | V200R021C10SPC600 | 01–04 | If the card is used in V200R021C00SPC100 or V200R021C01, install V200R021SPH180 or a later patch. |
| S12700E | S12700E-8 | V200R021C10SPC600 | 01–08 | If the card is used in V200R021C00SPC100 or V200R021C01, install V200R021SPH180 or a later patch. |
Indicators
Figure 7-111 Indicators on the LST7L12QX6E0
|
1. ACT/LINK indicator |
2. RUN/ALM: running status indicator |
Table 7-231 Indicators on the LST7L12QX6E0
| Silkscreen | Name | Color | Status | Description |
|---|---|---|---|---|
| – | ACT/LINK | Green | Steady on | A link has been established on the port. |
| Green | Blinking | The port is transmitting and receiving data. | ||
| RUN/ALM | Running status indicator | Green | Steady on | The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running. |
| Green | Slow blinking | The card software is running properly. | ||
| Green | Fast blinking | The card software is starting. | ||
| Red | Steady on | The card has failed and the fault requires manual intervention. | ||
| Yellow | Steady on | The card is powered off. (For example, the card has been forcibly powered off using the power off command or is about to start.) |
Ports
Figure 7-112 Ports on the LST7L12QX6E0
|
1. Twelve 40GE optical ports |
Table 7-232 Ports on the LST7L12QX6E0
| Port | Connector Type | Description | Available Components |
|---|---|---|---|
| 40GE optical port | QSFP+ | 40GE optical ports to transmit and receive service traffic at 40 Gbit/s |
Functions and Features
Table 7-233 Functions and features of the LST7L12QX6E0
| Functions and Features | Description |
|---|---|
| Basic function | Provides twelve 40GE optical ports for data transmission and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | Supported |
Technical Specifications
Table 7-234 Technical specifications of the LST7L12QX6E0
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] | 35.1 mm x 397.2 mm x 430.4 mm (1.38 in. x 15.64 in. x 16.95 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 160 mm x 510 mm x 570 mm (6.3 in. x 20.1 in. x 22.44 in.) |
| Weight without packaging [kg(lb)] | 3.55 kg (7.83 lb) |
| Weight with packaging [kg(lb)] | 5.55 kg (12.24 lb) |
| Typical power consumption [W] | 174 W |
| Typical heat dissipation [BTU/hour] | 593.71 BTU/hour |
| Maximum power consumption [W] | 193 W |
| Maximum heat dissipation [BTU/hour] | 658.54 BTU/hour |
| Memory | 1 GB |
