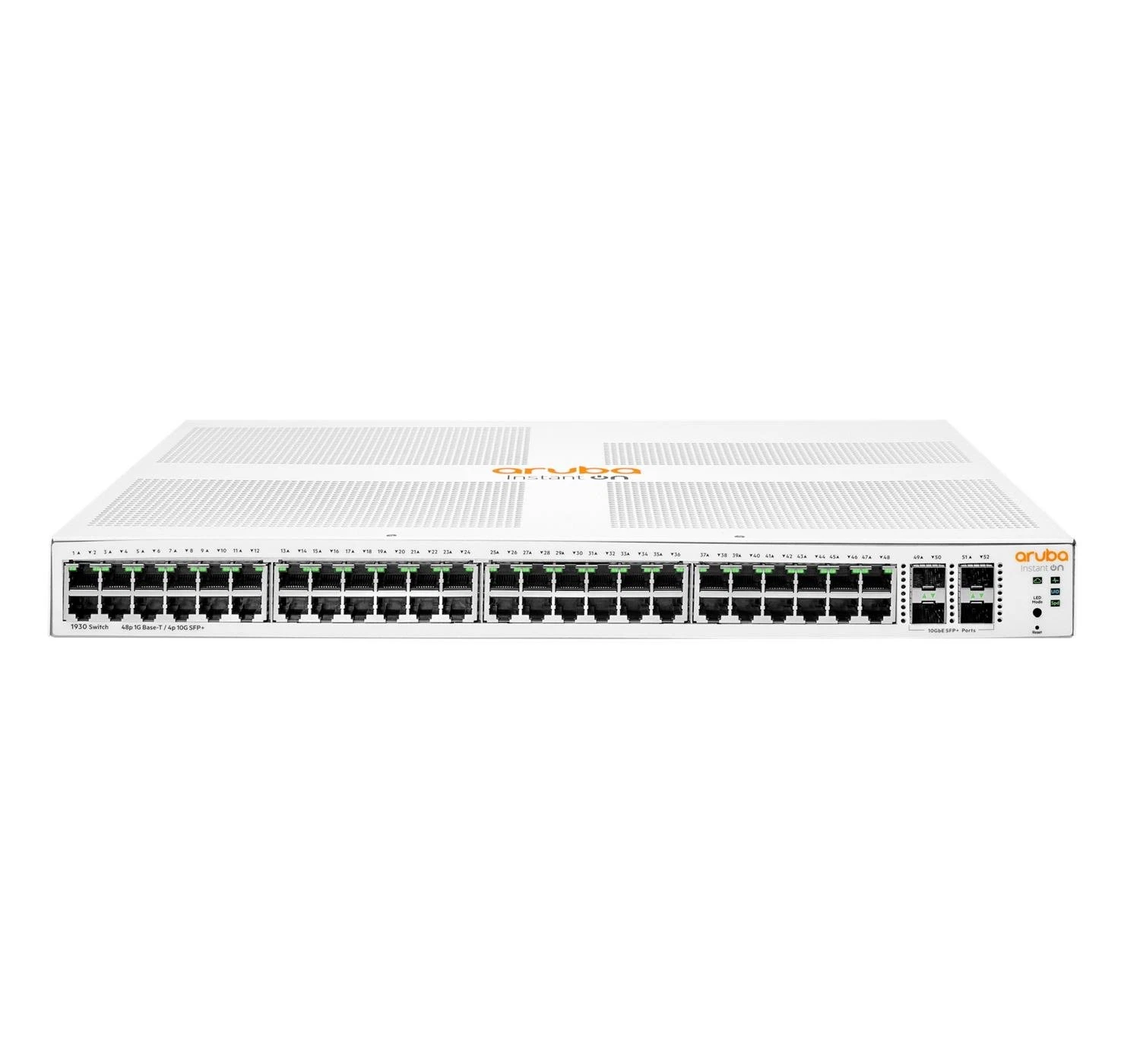

HPE Aruba JL686B Instant On 1930 48 Port

Description

HPE Aruba JL686B Instant On 1930 48 Port PoE 4SFP/SFP Switch JL686B

HPE Aruba JL686B Instant

DifferentiatorPorts: 48 Gigabit copper
Uplink ports: 4 SFP+ 1/10 GbE ports

Power consumption520W maximum, 50W idle

Input voltage100 – 127 / 200 – 240 VAC

Ports48 RJ-45 autosensing 10/100/1000 Class
4 PoE ports
(IEEE 802.3 Type 10B ASE-T, IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T)

Duplex: 10 BASE-T/100 BASE-TX: half or
full; 1000 BASE-T: full only
4 SFP+ 1/10 GbE ports

Switching capacity176 Gbps

Throughput130.95 Mpps, maximum

Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer

PoE capability370 W Class 4

Operating temperature32°F to 104°F (0°C to 40°C)

Management featuresInstant On Portal, Web browser, SNMP Manager

Detailed product descriptionThe HPE Networking Instant On Switch Series 1930 empowers you to do more. Affordable and easy-to-deploy, these smart-managed, fixed-configuration Gigabit switches are designed for the today bandwidth-heavy applications.

Weight4.59 kg (10.12 lb)

Dimensions4.39 x 44.25 x 32.26 cm (1.73 x 17.42 x 12.7 in)
