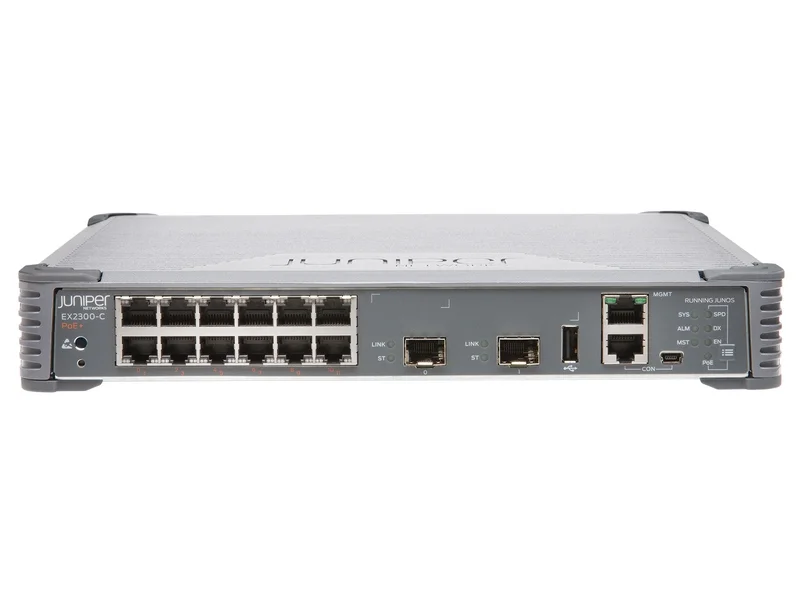

Juniper EX 2300-C Compact Fanless EX2300-C-12P 12-port

Description

Juniper EX2300-C-12P Compact Fanless Ethernet Switch – 12-Port PoE+ with 10/100/1000BASE-T & 1/10GbE Uplinks

Overview

The Juniper EX2300-C-12P is a compact, fanless Layer 2/Layer 3 Ethernet switch designed for small to medium-sized enterprises, branch offices, and edge deployments. It combines high-performance switching, PoE+ capabilities, and flexible uplink options in a silent, energy-efficient form factor. With support for Virtual Chassis technology, it can scale by linking up to four switches as a single logical device, simplifying management and expanding network capacity.

---

Key Features

High-Performance Switching

• Switching Capacity: 64 Gbps maximum with 64-byte packets.

• Layer 2/Layer 3 Throughput: Wire-speed packet forwarding of up to 47 Mpps.

• DRAM & Flash: 2 GB ECC DRAM and 2 GB Flash memory for stable operations.

• CPU: 1.25 GHz ARM processor for fast and reliable packet processing.

Ports & Connectivity

• 12 access ports: 10/100/1000BASE-T with PoE+ support.

• 2 uplink ports: 1/10GbE SFP/SFP+ for flexible network expansion.

• Port Redundancy: Supports Redundant Trunk Groups (RTG).

• Auto MDI/MDIX, cable diagnostics, and port speed downshift for ease of deployment.

Virtual Chassis Technology

• Link up to 4 EX2300-C switches as a single logical device.

• Simplifies management, configuration, and scaling in growing networks.

• Backplane interconnect provides 40 Gbps bandwidth for Virtual Chassis.

---

Layer 2 & Layer 3 Features

Layer 2 Capabilities

• Supports 4093 VLANs with flexible VLAN IDs (1–4094).

• MAC-based VLANs, voice VLAN, and port-based VLANs.

• Spanning Tree Protocols: RSTP, MSTP, PVST+, and STP for loop prevention.

• Advanced features like Q-in-Q tunneling, LLDP-MED, and Bridge Port Extension.

• Jumbo frames up to 9216 bytes.

Layer 3 Capabilities

• IPv4: 512 unicast prefixes, 4,096 host routes, 2,048 multicast groups.

• IPv6: 512 unicast prefixes, 2,048 host routes, 1,024 multicast groups.

• Supports RIP, OSPF, RIPng, OSPFv3, static routing, and Bidirectional Forwarding Detection (BFD).

• RVI (Routed VLAN Interface) for flexible Layer 3 deployment.

---

Security & Access Control

• 802.1X port-based authentication with VLAN assignment and multiple supplicants.

• MAC limiting, sticky MAC, Dynamic ARP Inspection (DAI), and DHCP snooping.

• IPv6 RA Guard and Neighbor Discovery Inspection.

• Captive portal, MAC-RADIUS, and Trusted Network Connect (TNC) certified.

• Junos OS firewall filters with PACL, VACL, and RACL support for ingress/egress traffic.

---

High Availability & QoS

• Link Aggregation (LACP): Up to 128 LAGs, 8 ports per LAG.

• Uplink Failure Detection (UFD) for resiliency.

• QoS: Layer 2/Layer 3 classification, 8 hardware queues per port, SP & SDWRR scheduling.

• Congestion avoidance with Tail Drop and Weighted Random Early Detection (WRED).

---

Multicast & Routing

• IGMP snooping: 2,000 entries, supporting v1, v2, and v3.

• PIM: Sparse Mode (SM), Source-Specific Multicast (SSM), Dense Mode (DM).

• Full IPv6 multicast support with MLDv1/v2.

---

Manageability & Monitoring

• Junos OS CLI & J-Web GUI for configuration and monitoring.

• Out-of-band management via serial and 10/100BASE-T ports.

• SNMP v1/v2c/v3, RMON, real-time performance monitoring (RPM).

• Configuration rollback, rescue configurations, and image rollback.

• Supports NTP, DHCP server/client/relay, DNS, SSHv2, SCP, HTTP/HTTPS, and Syslog.

---

Physical & Environmental Specifications

• Dimensions: 10.98 × 1.72 × 9.4 in (27.9 × 4.4 × 23.9 cm)

• Weight: 6.99 lb (3.17 kg)

• Fanless Design: Silent operation (0 dB noise).

• Operating Temperature: 32°–104°F (0°–40°C), storage -40°–158°F (-40°–70°C)

• Humidity: 10–85% non-condensing (operating), 0–95% non-condensing (storage)

• Altitude: Up to 5,000 ft operating, 16,000 ft non-operating

---

Power & Safety

• Power: Fixed internal AC supply, max 20 W (excluding PoE).

• Certifications: UL, TUV/GS, CB-IEC60950-1, FCC, CE, VCCI, AS/NZS CISPR 22.

• Telecom Quality Management: TL9000 certified.

---

Why Choose EX2300-C-12P?

• Compact and fanless for quiet deployment in offices and classrooms.

• PoE+ support for IP phones, cameras, and access points.

• Scalable with Virtual Chassis technology for easy network expansion.

• Advanced Layer 2/3 features and security for enterprise-grade performance.

• Energy-efficient, low maintenance, and fully manageable with Junos OS.
