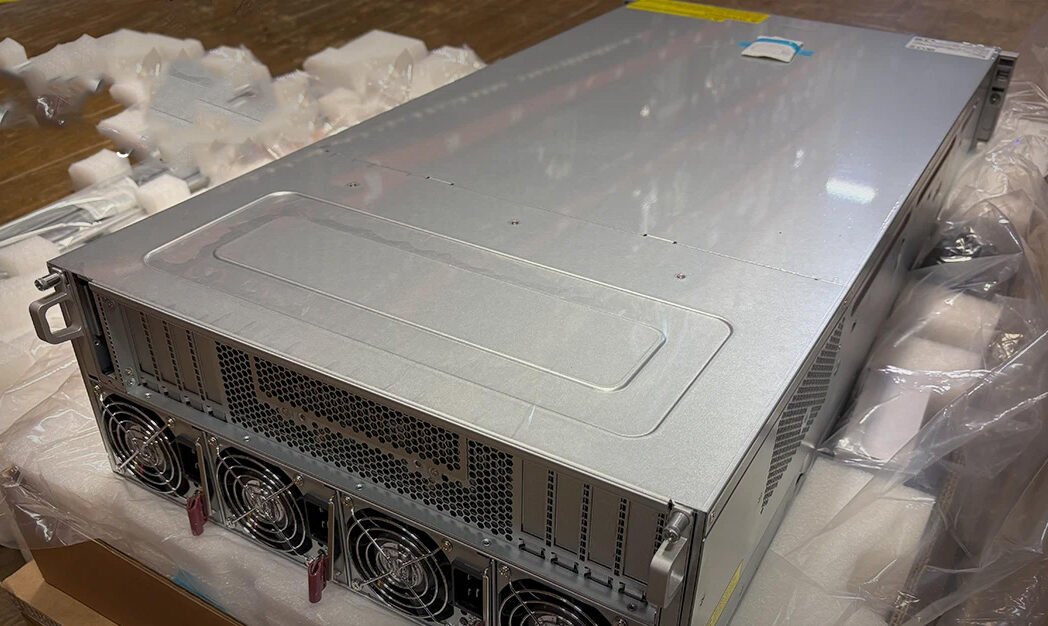

SUPERMICRO SERVER AS -4124GO-NART GPU A+ Server

Description

SUPERMICRO SERVER AS -4124GO-NART  GPU A+ Server AS -4124GO-NART DP AMD System with NVIDIA HGX A100 8-GPU SXM4 80GB, 2 PROCESSORS AMD EPYC 7742, 32X 64GB DDR4-3200, 2X 960GB GEN4 NVME.

SUPERMICRO SERVER AS -4124GO-NART

• Processor Dual 2X SP3 AMD EPYC 7742 64 core 128 thread 2.25GHz 225w.
• Max GPU Count: 8 onboard GPUs Supported GPU: NVIDIA SXM: HGX A100 8-GPU (80GB).
• System Memory Slot Count: 32 X 64GB DDR4-3200
• STORAGE DRIVES : 2X 960GB GEN4 NVME
• SUPERMICRO AOC-A25G
• Expansion Slots Default 1 PCIe 4.0 x16 (in x16) LP slot 1 PCIe 4.0 x8 (in x8) LP slot 8 PCIe 4.0 x16 (in x16) via PCIe switch slots.
• System Cooling Fans: 4 hot-swap 11.5K RPM heavy duty Fans
• Power Supply: 4x 2200W Redundant (3 + 1) Platinum Level  power supplies.

Key Features :

• Supports NVIDIA® HGX™ A100 8-GPU Highest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™ NICs for GPUDirect RDMA (1:1 GPU Ratio) Supports HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e);
• Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer);
• 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs; 8 PCIe 4.0 x16 via PCIe switch; 1 PCIe 4.0 x 16 LP and 1 PCIe 4.0 x8 LP via CPUs; AIOM Support;
• 6 Hot-swap 2.5″ NVMe drive bays (4 via PCIe switch, 2 via CPU) Up to 10 U.2 NVMe 2.5″ drives available with an optional 4 drive bays at rear of system;

• System BIOS BIOS Type: AMI 256MB SPI Flash ROM
• Management Supermicro Server Manager (SSM); Supermicro Power Manager (SPM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); KVM with dedicated LAN ; IPMI 2.0; Watch Dog.
• On-Board Devices SATA: SATA (6Gbps) Chipset: System on Chip Network Connectivity: Ethernet IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support.
• Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports(front) Video: 1 VGA port(Front).
• PC Health Monitoring CPU: Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors
• Dimensions and Weight Weight: Gross Weight: 225 lbs (102.1 kg) Net Weight: 166 lbs (75.3 kg) Available Color: Black Front & Silver Body.
• Operating Environment RoHS Compliant Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
